高頻焊接H型鋼...
|
|
| 產品名稱：高頻焊接H型鋼 |
| 產品編號：— |
發布日期：
2013/12/19 |
| 產品產地：— |
產品規格：可根據用戶需求定制 |
| 產品商標：— |
 |
|
|
|
|
|
 公司專業生產高頻焊接H型鋼，高頻焊接H型鋼具有重量輕，強度高，質量可靠，安裝方便，拆除時環境污染少，廢鋼材可以回收等優點，有更大的抗彎曲，抗扭轉，抗震性能，其造型美觀，加工方便，建筑周期短。

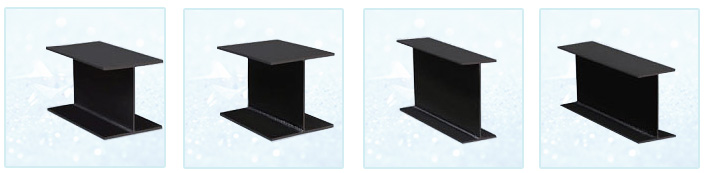

規格：200*100 規格：250*125 規格：300*150 規格：350*150

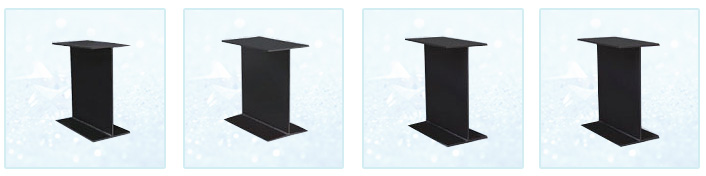

規格：400*200 規格：450*200 規格：450*250 規格：500*200
規格：500*250 規格：550*200 規格：550*200 規格：600*200
|
序號
NO. |
界面尺寸
Secion Size |
A(cm2) |
理論重量
Theoretical
weight |
X-X |
Y-Y |
|
Lx |
Wx |
Lx |
Ly |
Wy |
Iy |
|
H |
B |
Tw |
Tt |
cm2 |
kg/m |
cm4 |
cm3 |
cm |
cm4 |
cm3 |
cm |
|
1 |
200 |
100 |
3.0 |
3.0 |
11.82 |
9.28 |
764.71 |
76.47 |
8.04 |
50.04 |
10.01 |
2.06 |
|
2 |
3.2 |
4.5 |
15.11 |
11.86 |
1045.92 |
104.59 |
8.32 |
75.05 |
15.01 |
2.23 |
|
3 |
4.5 |
6.0 |
20.46 |
16.06 |
1378.62 |
137.86 |
8.21 |
100.14 |
20.03 |
2.21 |
|
4 |
6.0 |
8.0 |
27.04 |
21.23 |
1786.89 |
178.69 |
8.13 |
133.66 |
26.73 |
2.22 |
|
5 |
150 |
3.2 |
4.5 |
19.61 |
15.40 |
1475.97 |
147.60 |
8.68 |
253.18 |
33.76 |
3.59 |
|
6 |
4.5 |
6.0 |
26.46 |
20.77 |
1943.34 |
194.33 |
8.57 |
337.64 |
45.02 |
3.57 |
|
7 |
6.0 |
8.0 |
35.01 |
27.51 |
2524.60 |
252.46 |
8.49 |
450.33 |
60.04 |
3.58 |
|
8 |
200 |
6.0 |
8.0 |
43.04 |
33.79 |
3262.30 |
326.23 |
8.71 |
1067.00 |
106.70 |
4.98 |
|
9 |
250 |
125 |
3.0 |
3.0 |
14.82 |
11.63 |
15.7.14 |
120.57 |
10.08 |
97.71 |
15.63 |
2.57 |
|
10 |
3.2 |
4.5 |
18.96 |
14.89 |
2068.56 |
165.48 |
10.44 |
146.55 |
23.45 |
2.78 |
|
11 |
4.5 |
6.0 |
25.71 |
20.18 |
2738.60 |
219.09 |
10.32 |
195.49 |
31.28 |
2.76 |
|
12 |
4.5 |
8.0 |
30.53 |
23.97 |
3409.75 |
272.78 |
10.57 |
260.59 |
41.70 |
2.92 |
|
13 |
6.0 |
8.0 |
34.04 |
26.72 |
3569.91 |
285.59 |
10.24 |
260.84 |
41.73 |
2.77 |
|
14 |
150 |
3.2 |
4.5 |
21.21 |
16.65 |
2407.62 |
192.61 |
10.65 |
253.19 |
33.76 |
3.45 |
|
15 |
4.5 |
6.0 |
28.71 |
22.54 |
3185.21 |
254.82 |
10.53 |
337.68 |
45.02 |
3.43 |
|
16 |
4.5 |
8.0 |
34.53 |
27.11 |
3995.60 |
319.65 |
10.76 |
450.18 |
60.02 |
3.61 |
|
17 |
6.0 |
8.0 |
38.04 |
29.86 |
4155377 |
332.46 |
10.45 |
450.42 |
60.06 |
3.44 |
|
18 |
|
6.0 |
8.0 |
46.04 |
39.14 |
5327.47 |
426.20 |
10.76 |
1067.09 |
106.71 |
4.81 |
|
19 |
300 |
150 |
3.2 |
4.5 |
22.81 |
17.91 |
3604.41 |
240.29 |
12.57 |
253.20 |
33.76 |
3.33 |
|
20 |
4.5 |
6.0 |
30.96 |
24.30 |
4785.96 |
319.06 |
12.43 |
337.72 |
45.03 |
3.30 |
|
21 |
4.5 |
8.0 |
36.78 |
28.87 |
5976.11 |
398.41 |
12.75 |
450.22 |
60.03 |
3.50 |
|
22 |
|
|
6.0 |
8.0 |
41.04 |
32.22 |
6262.44 |
417.50 |
12.35 |
450.51 |
60.07 |
3.31 |
|
23 |
350 |
|
6.0 |
8.0 |
49.01 |
38.50 |
7968.14 |
531.21 |
12.75 |
1067.18 |
106.72 |
4.66 |
|
24 |
150 |
3.2 |
4.5 |
24.41 |
19.16 |
5086.36 |
290.65 |
14.43 |
253.22 |
33.76 |
3.22 |
|
25 |
4.5 |
6.0 |
33.21 |
26.07 |
6773.70 |
387.07 |
14.28 |
337.76 |
45.03 |
3.19 |
|
26 |
6.0 |
8.0 |
44.01 |
34.57 |
8882.11 |
507.55 |
14.20 |
450.60 |
60.08 |
3.20 |
|
27 |
150 |
4.5 |
6.0 |
36.21 |
28.42 |
7661.31 |
437.79 |
14.55 |
536.19 |
61.28 |
3.85 |
|
28 |
4.5 |
8.0 |
43.03 |
33.78 |
9586.21 |
547.78 |
14.93 |
714.84 |
81.70 |
4.08 |
|
29 |
6.0 |
8.0 |
48.04 |
37.71 |
10051.96 |
574.40 |
14.47 |
715.18 |
81.74 |
3.86 |
|
30 |
|
6.0 |
8.0 |
52.04 |
40.85 |
11221.81 |
641.25 |
14.68 |
1067.27 |
106.73 |
4.53 |
|
31 |
400 |
|
4.5 |
8.0 |
41.28 |
32.40 |
11344.49 |
567.22 |
16.58 |
450.29 |
60.04 |
3.30 |
|
32 |
200 |
6.0 |
10.0 |
55.04 |
43.21 |
15125.98 |
756.30 |
16.58 |
1067.36 |
106.74 |
4.40 |
|
33 |
6.0 |
10.0 |
62.80 |
49.30 |
15833.77 |
791.96 |
16.06 |
1067.76 |
106.78 |
4.15 |
|
34 |
|
8.0 |
10.0 |
80.40 |
63.11 |
19615.26 |
981.04 |
16.06 |
1684.83 |
168.48 |
5.25 |
|
35 |
450 |
200 |
4.5 |
8.0 |
51.53 |
40.45 |
18696.32 |
830.95 |
19.05 |
1067.00 |
106.70 |
4.55 |
|
36 |
6.0 |
8.0 |
58.04 |
45.56 |
19718.15 |
876.36 |
18.43 |
1067.45 |
106.74 |
4.29 |
|
37 |
8.0 |
10.0 |
74.04 |
58.41 |
16659.91 |
833.27 |
16.97 |
1126.06 |
112.61 |
4.39 |
|
38 |
250 |
4.5 |
8.0 |
59.53 |
46.73 |
22604.03 |
1004.62 |
19.49 |
2083.66 |
166.69 |
5.92 |
|
39 |
6.0 |
8.0 |
66.04 |
51.84 |
23625.86 |
1050.04 |
18.91 |
2084.11 |
166.73 |
5.62 |
|
40 |
8.0 |
10.0 |
84.40 |
66.25 |
20564.08 |
948.32 |
18.87 |
1478.24 |
147.82 |
4.93 |
|
41 |
500 |
200 |
4.5 |
8.0 |
53.78 |
42.22 |
23618.57 |
944.74 |
20.96 |
1067.03 |
106.70 |
4.45 |
|
42 |
6.0 |
8.0 |
61.04 |
47.92 |
25035.82 |
1001.43 |
20.25 |
1067.54 |
106.75 |
4.18 |
|
43 |
6.0 |
10.0 |
68.80 |
54.01 |
17482.52 |
874.40 |
17.35 |
1248.76 |
124.88 |
3.71 |
|
44 |
8.0 |
10.0 |
78.40 |
61.54 |
18190.30 |
910.06 |
16.83 |
1249.16 |
124.91 |
3.46 |
|
45 |
250 |
4.5 |
8.0 |
61.78 |
48.50 |
28460.28 |
1138.41 |
21.46 |
2083.70 |
166.70 |
5.81 |
|
46 |
6.0 |
8.0 |
69.04 |
54.20 |
29877.53 |
1195.10 |
20.80 |
2083.20 |
166.74 |
5.49 |
|
47 |
6.0 |
10.0 |
78.80 |
61.86 |
19554.90 |
978.24 |
14.96 |
1386.36 |
111.22 |
2.86 |
|
48 |
8.0 |
10.0 |
88.40 |
69.39 |
21971.79 |
1099.14 |
16.81 |
1557.70 |
124.96 |
3.21 |
|
49 |
550 |
200 |
6.0 |
8.0 |
64.04 |
50.27 |
15833.74 |
791.92 |
16.02 |
1067.02 |
106.70 |
4.11 |
|
50 |
250 |
8.0 |
8.0 |
72.04 |
64.94 |
18050.47 |
902.79 |
18.27 |
1216.41 |
121.64 |
4.69 |
|
51 |
8.0 |
10.0 |
92.40 |
72.53 |
23285.11 |
1164.60 |
23.57 |
1569.17 |
156.92 |
6.05 |
|
52, |
600 |
20, 0<, /P> |
6, .0 |
8.0 |
67.04 |
52.62 |
16587.01 |
829.63 |
16.82 |
1118.55 |
111.86 |
3.84 |
|
53 |
8.0 |
10.0 |
86.40 |
67.82 |
20661.55 |
952.82 |
18.96 |
1485.25 |
148.53 |
49.5 |
|
54 |
250 |
6.0 |
8.0 |
75.04 |
58.91 |
18124.17 |
835.81 |
16.64 |
1302.85 |
130.29 |
4.35 |
|
55 |
8.0 |
10.0 |
96.40 |
75.67 |
23380.18 |
1478.20 |
21.47 |
1680.68 |
168.08 |
5.62 | |
|
|
|
|
|
|
|
|
|
